TECHNICAL SPECIFICATIONS

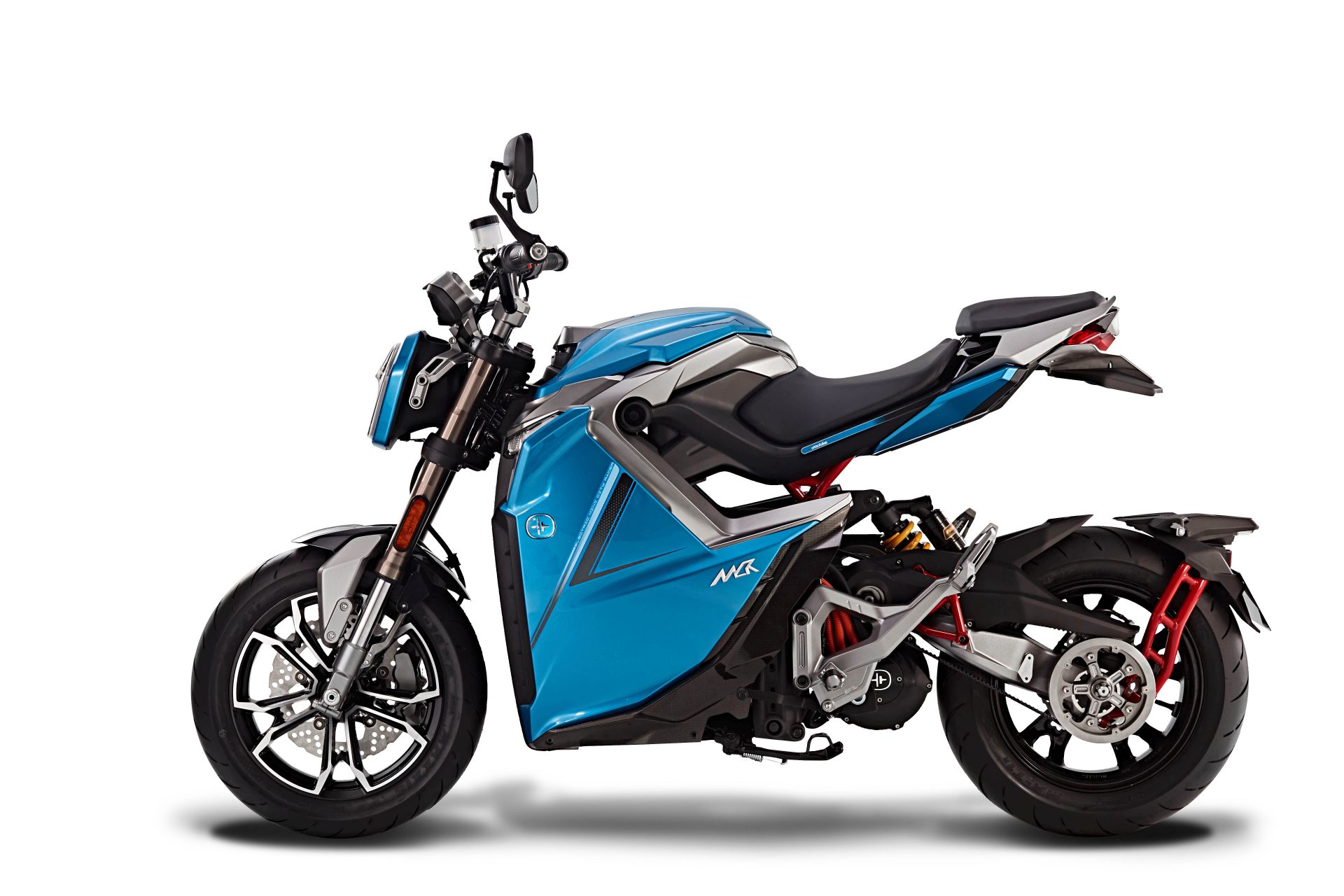

MCR / Mid-motor

Range

Full battery

80%-20% battery

230km (50km/h)

150km (50km/h)

Motor

Peak torque (Motor / Wheel)

Rated power

Top speed (max)

Type

Controller Type

30/273 Nm

10.5kW

140 km/h

Liquid Cooling Central Motor

Liquid Cooling

Power System

Max capacity

Charger type

Charging time (20%-80%)

Universal Input

139.8 Ah

1.2kW onboard charge

4.5hrs

100-220 VAC

Drivetrain

Transmission

two step belt

Chassis/ Suspension/ Brakes

Front suspension

Rear suspension

Front brakes

Rear brakes (combine brake system; CBS)

Front tire

Rear tire

35 mm upside-down fork

218mm monoshock, piggyback with adjustable spring preload and rebound damping

Brembo Fixed 32mm four-piston caliper with 270mm floating disc

Brembo Fixed 32mm two-piston caliper with 200mm disc

Maxxis MA-T1F 110/80-14

Maxxis MA-T1R 140/70-14

Dimensions

Wheelbase

Seat height

Rake

Length

Width

Height

1,370mm

805mm

26.7°

1,924mm

920mm

1,204mm

Weight

Curb weight

195 kg

Electronic

Dashboard

Connectivity

Riding modes

TFT, full-color integrate

LTE-NB1

Eco, Comfort, Sport, Turbo

Warranty

Standard motocycle warranty

Power pack warranty

2 years or 15,000 km

1 year or 1,000 charging cycles
