TECHNICAL SPECIFICATIONS

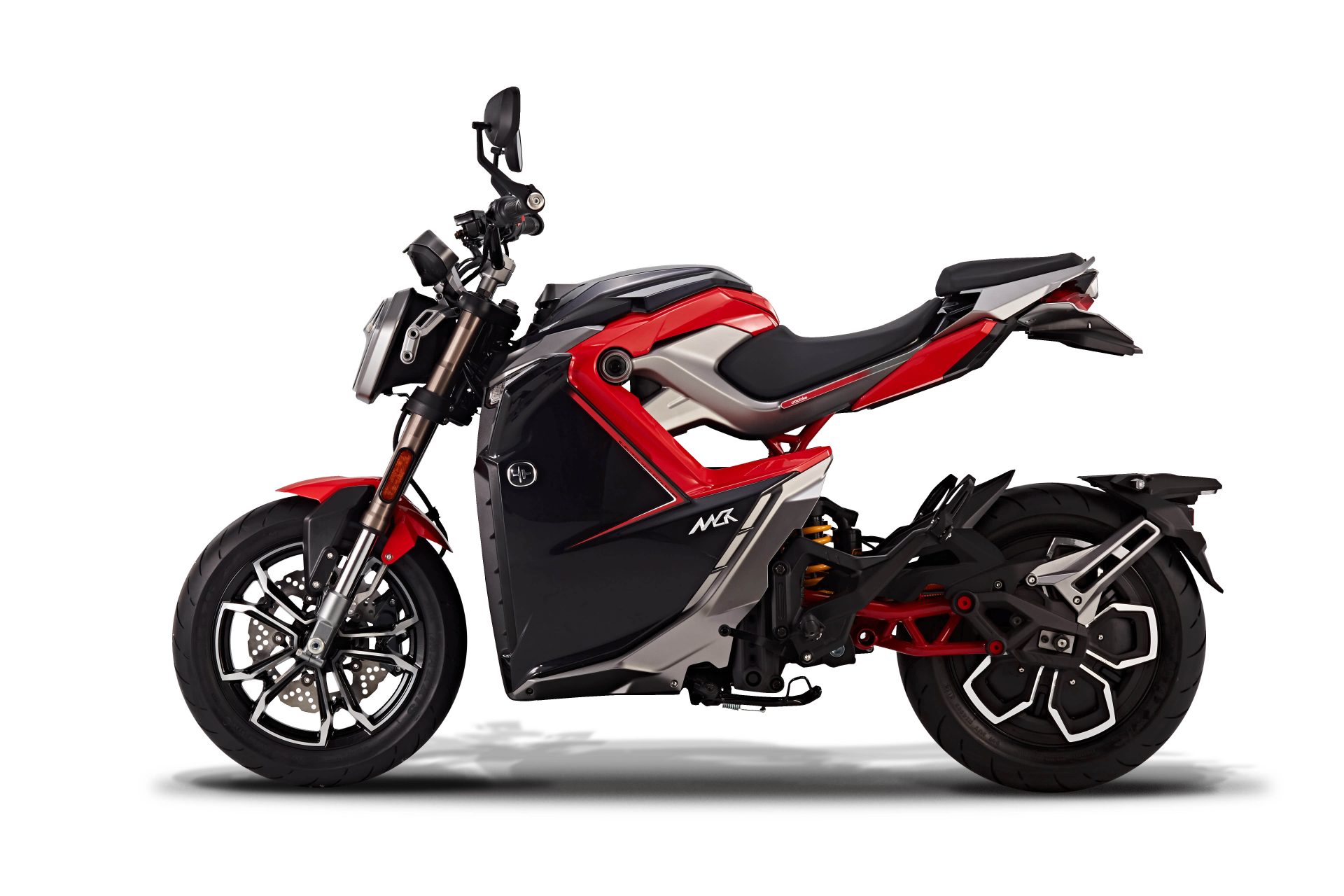

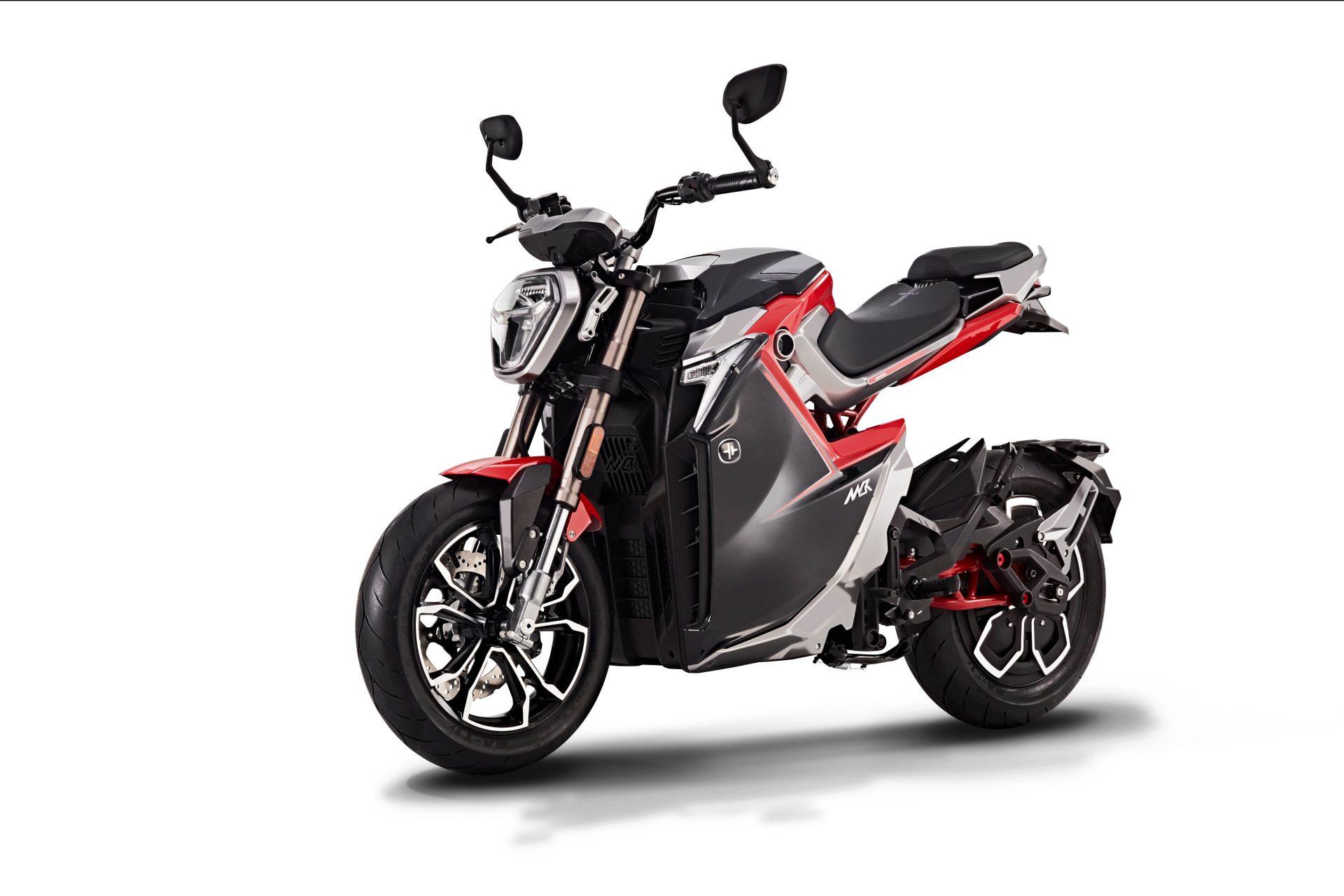

MCR / Hub-motor

Range

Full battery

80%-20% battery

120km (50km/h)

80km (50km/h))

Motor

Peak torque (Motor / Wheel)

Rated power

Top speed (max)

Type

Controller Type

66.2Nm

4.5kW

99 km/h

Air Cooling Hub Motor

Passive Air Cooling

Power System

Max capacity

Charger type

Charging time (20%-80%)

Universal Input

69.9 Ah

1.2kW onboard charger

2.25hrs

100-220 VAC

Drivetrain

Transmission

N/A

Chassis/ Suspension/ Brakes

Front suspension

Rear suspension

Front brakes

Rear brakes (combine brake system; CBS)

Front tire

Rear tire

35 mm upside-down fork

Multi-Link 245mm monoshock with piggyback

Fixed 32mm four-piston caliper with 270mm floating disc

Fixed 32mm two-piston caliper with 230mm disc

Maxxis MA-T1F 110/80-14

Maxxis MA-T1R 140/70-14

Dimensions

Wheelbase

Seat height

Rake

Length

Width

Height

1,318mm

805mm

26.7°

1,887 mm

920mm

1,200mm

Weight

Curb weight

160 kg

Electronic

Dashboard

Connectivity

Riding modes

LCD

LTE-NB1

Eco, Comfort, Sport, Turbo

Warranty

Standard motocycle warranty

Power pack warranty

2 years or 15,000 km

1 year or 1,000 charging cycles
